Description

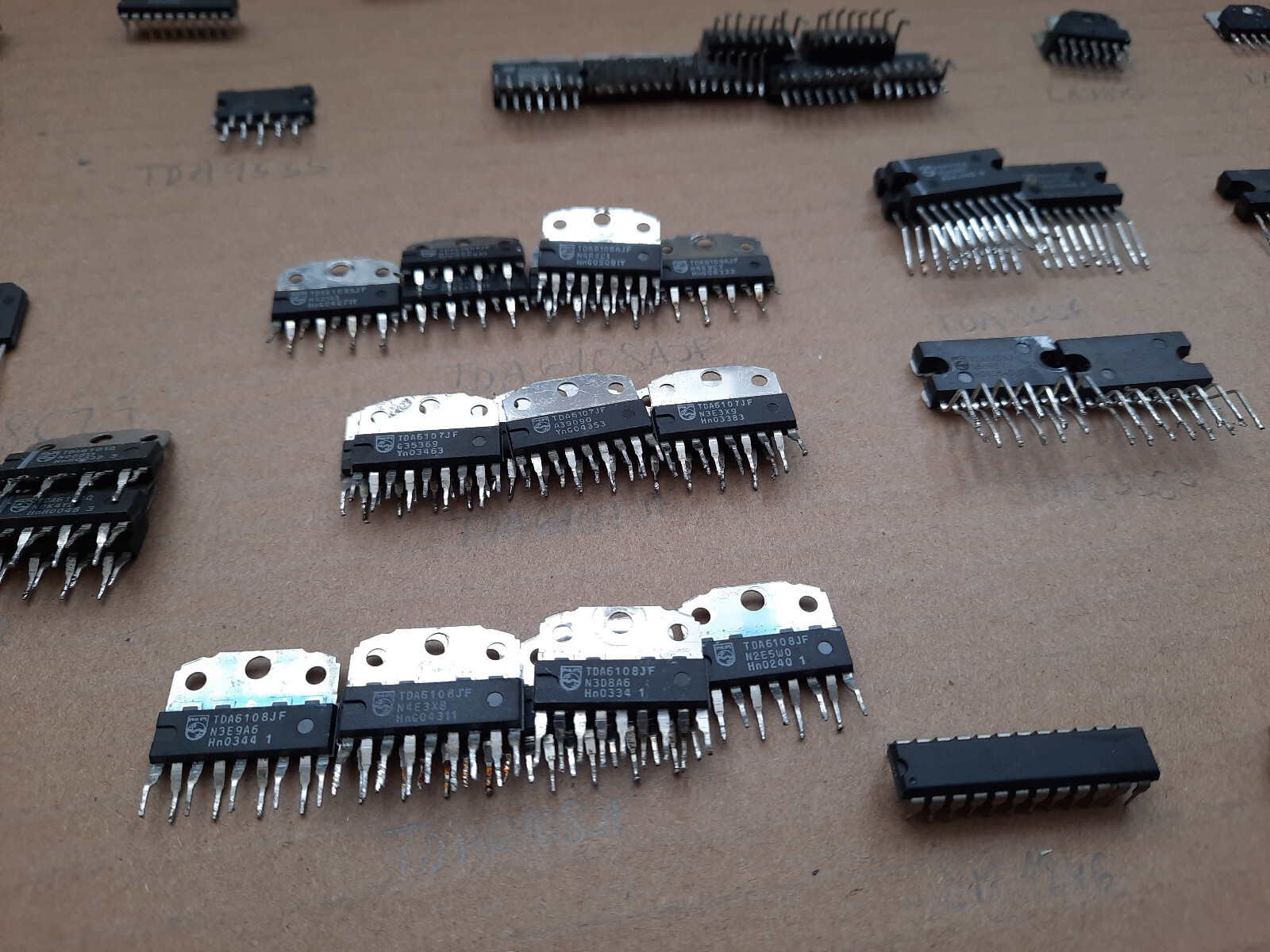

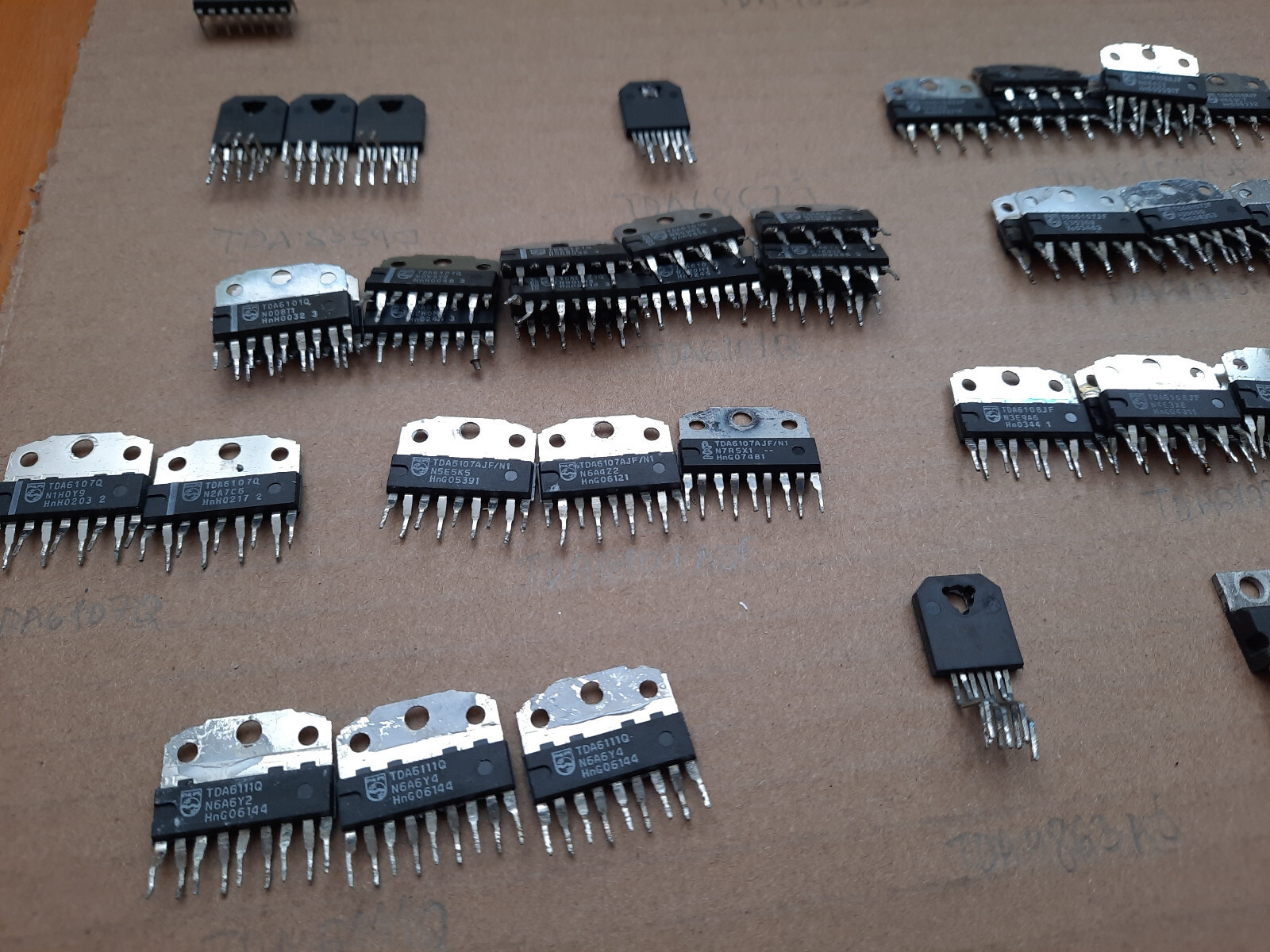

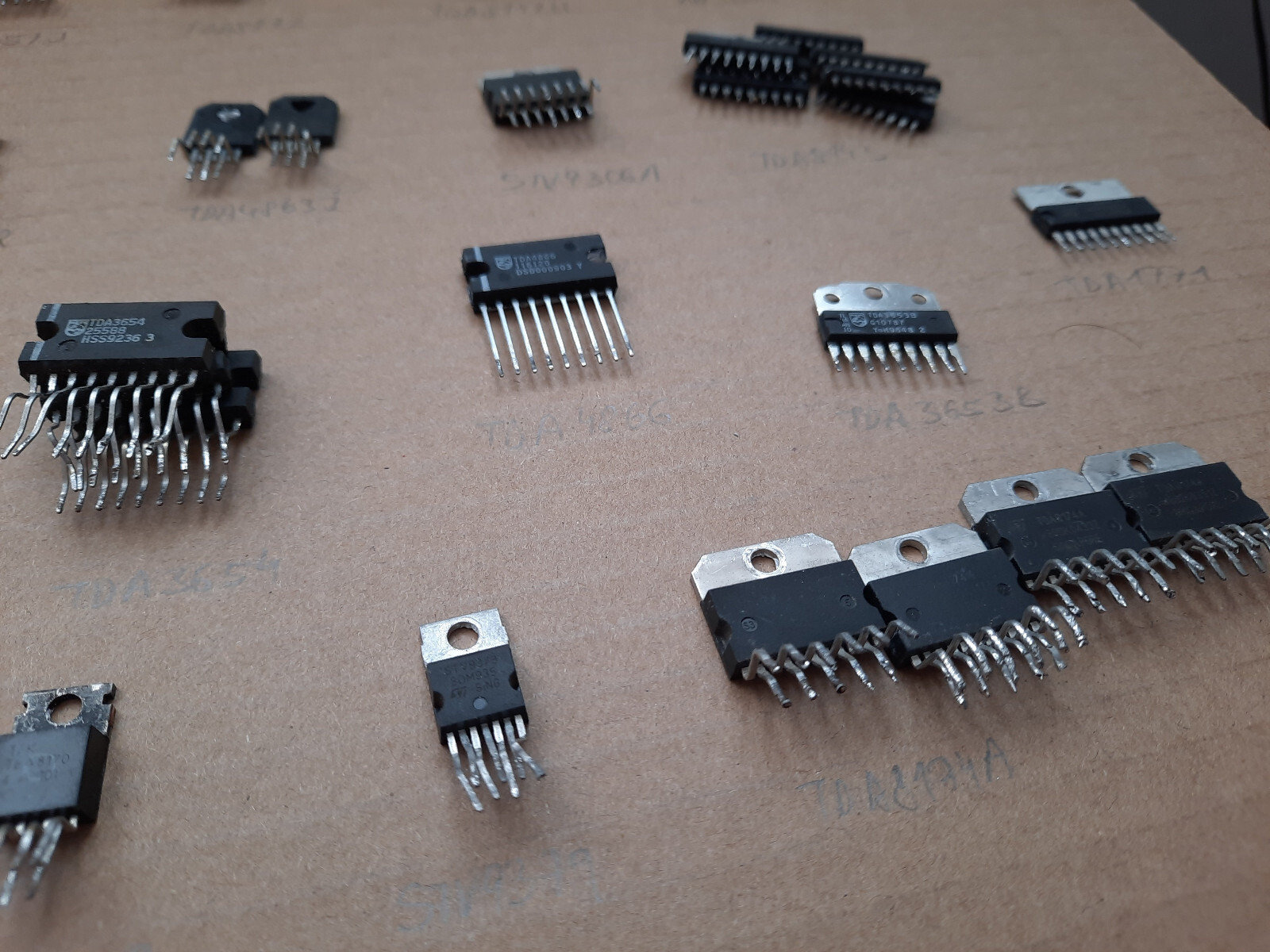

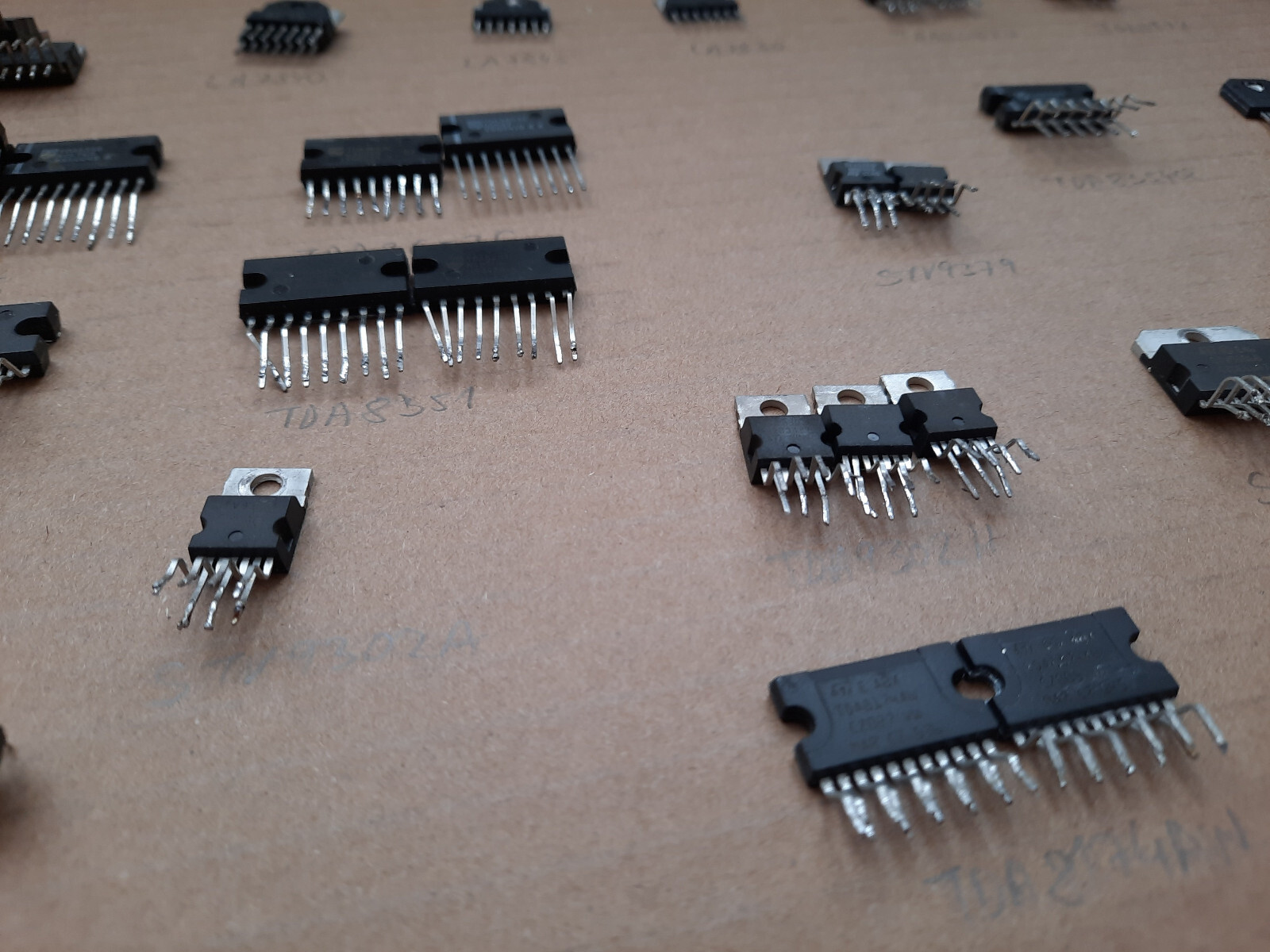

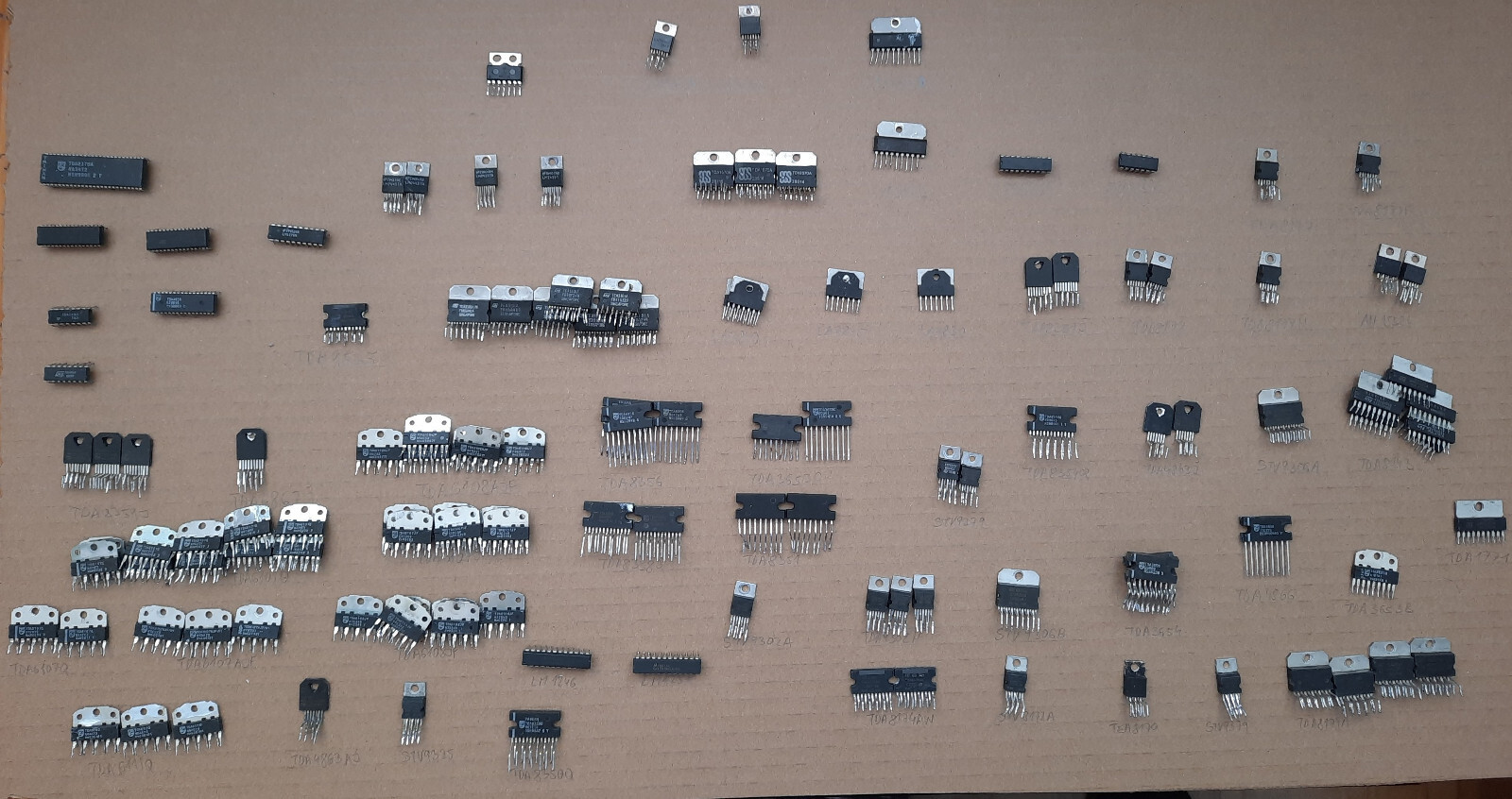

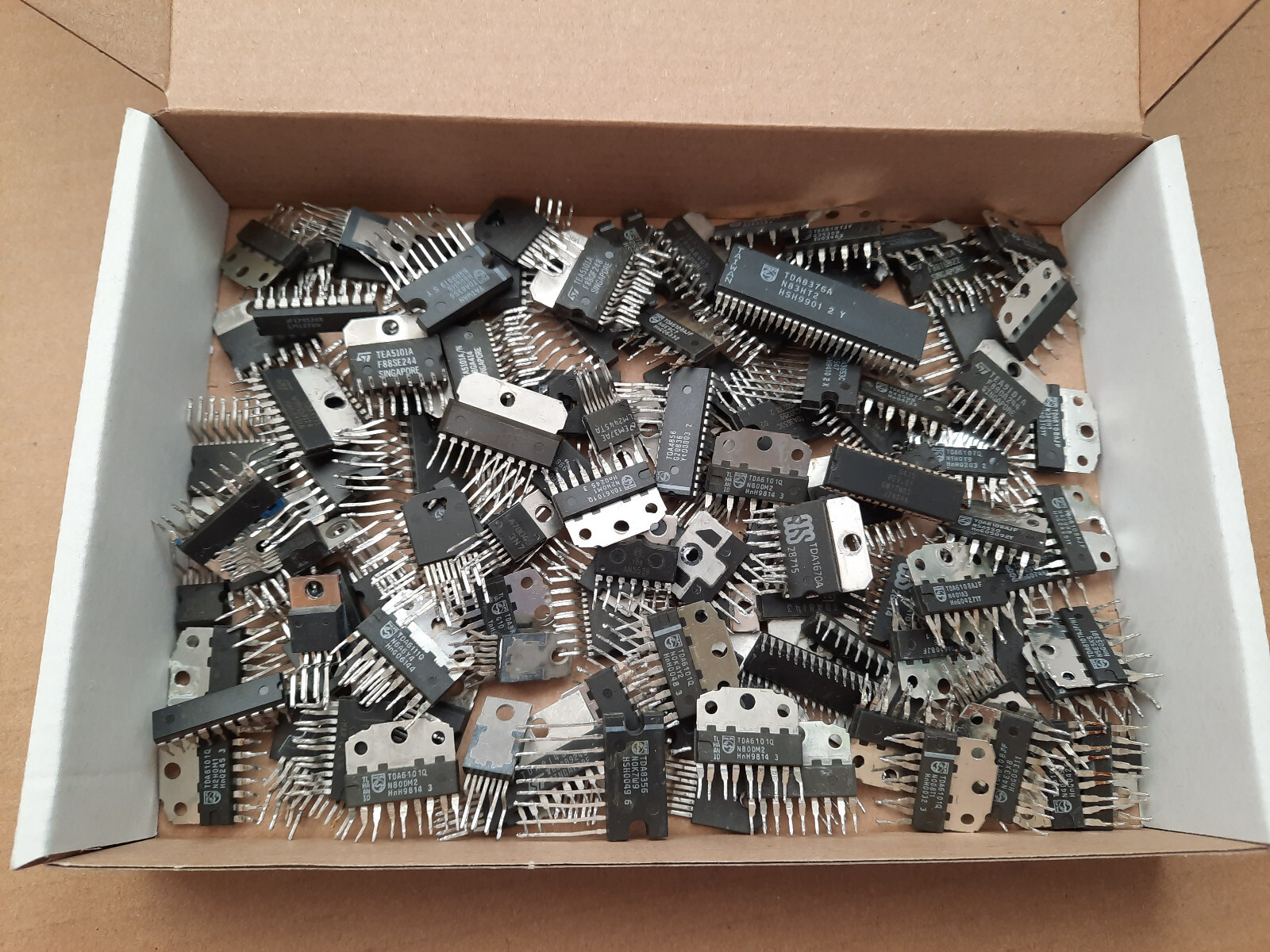

This is a lot of integrated circuits pulled from TVs/CRT monitors. They may come handy for a repair. As they are pulled, it's not guaranteed all of them will work (there is no way to test them), but you can be sure they are original and not fakes.

AN15524 (2x) - CRT vertical deflection output
AN5539 - -||-
KA2131 - -||-
KA2142 - -||-
LA78040 - Vertical Deflection Output IC With Bus Control Support for TVs and CRT Display
LA78045 - TV and CRT Display Vertical Output IC with Bus Control Support
LA7830 - Color TV Vertical Deflection Output Circuit
LA7840 (2x) - Vertical Deflection Output Circuit
LA7845N - -||-
LM1237 - 150 MHz I2C Compatible RGB Preamplifier with Internal 254 Character OSD and 4 DACs
LM1246 - 150 MHz I2C Compatible RGB Preamplifier with Internal 512 Character OSD ROM, 512 Character RAM and 4 DACs
LM1279N - 110 MHz RGB Video Amplifier System with OSD
LM2439T - Monolithic Triple 9.5 ns CRT Driver
LM2445TA (2x) - Monolithic Triple 7.5 ns CRT Driver
LM2469TA - Monolothic Triple 9 ns High Gain CRT Driver
STV2180A - Base Band Chroma Delay Line
STV8172A - Vertical Deflection Booster for 3-AppTV/Monitor Applications with 70-V Flyback Generator
STV9118 - Low-cost I2C Controlled Deflection Processor For Multisync Monitor
STV9211 - 150 MHz Pixel Video Controller For Monitors In DC-Coupling Mode
STV9302A - Vertical Deflection Booster for 2-AppTV/Monitor Applications with 70-V Flyback Generator
STV9306A - Bus-Controlled Vertical Deflection System with East/West Correction Output Circuit
STV9306B - -||-
STV9325 - Vertical Deflection Booster for 2.5-AppTV/Monitor Applications with 70-V Flyback Generator
STV9379 - Vertical Deflection Booster
TDA1670A (3x) - Vertical Deflection Circuit
TDA1771 - -||-
TDA2593 - Synchro And Horizontal Deflection Control For Color Tv Set
TDA3653B - Vertical deflection and guard circuit (90°)
TDA3653C (2x) - Vertical deflection and guard circuit (90°)
TDA3654 (3x) - Vertical deflection and guard circuit (110°)
TDA4856 - I2C-bus autosync deflection controller for PC monitors
TDA4863AJ - Vertical deflection booster
TDA4863J - Vertical deflection booster
TDA4866 - Full bridge current driven vertical deflection booster
TDA4867J - -||-
TDA6101Q (12x) - Video output amplifier
TDA6107AJF (3x) - Triple video output amplifier
TDA6107JF (6x) - -||-
TDA6107Q (2x) - -||-
TDA6108AJF (6x) - -||-
TDA6108JF (6x) - -||-
TDA6111Q (3x) - Video output amplifier
TDA8140 - Horizontal Deflection Power Driver
TDA8143 (7x) - -||-
TDA8172 (2x) - TV Vertical Deflection Output Circuit
TDA8174A (4x) - Vertical Deflection Circuit
TDA8174AW (2x) - -||-
TDA8177 - Vertical deflection booster
TDA8177F - -||-
TDA8177H - -||-
TDA8350Q - DC-coupled vertical deflection and East-West output circuit
TDA8351 (2x) - DC-coupled vertical deflection circuit
TDA8354Q - Full bridge current driven vertical deflection output circuit in LVDMOS
TDA8356 (3x) - DC-coupled vertical deflection circuit
TDA8357J (2x) - Full bridge vertical deflection output circuit in LVDMOS
TDA8358J (2x) - Full bridge vertical deflection output circuit in LVDMOS with east-west amplifier
TDA8359J (3x) - Full bridge vertical deflection output circuit in LVDMOS
TDA8376A - I2C-bus controlled PAL/NTSC TV processor
TDA9302H (3x) - TV Vertical Deflection Output Circuit
TDA9535 - 9.5 ns Triple High Voltage Video Amplifier
TEA5101A (6x) - RGB High Voltage Video Amplifier
TEA8170
U415 REV.01
