Vintage PC Chips M560 V3.1 AT motherboard + RAM
Description

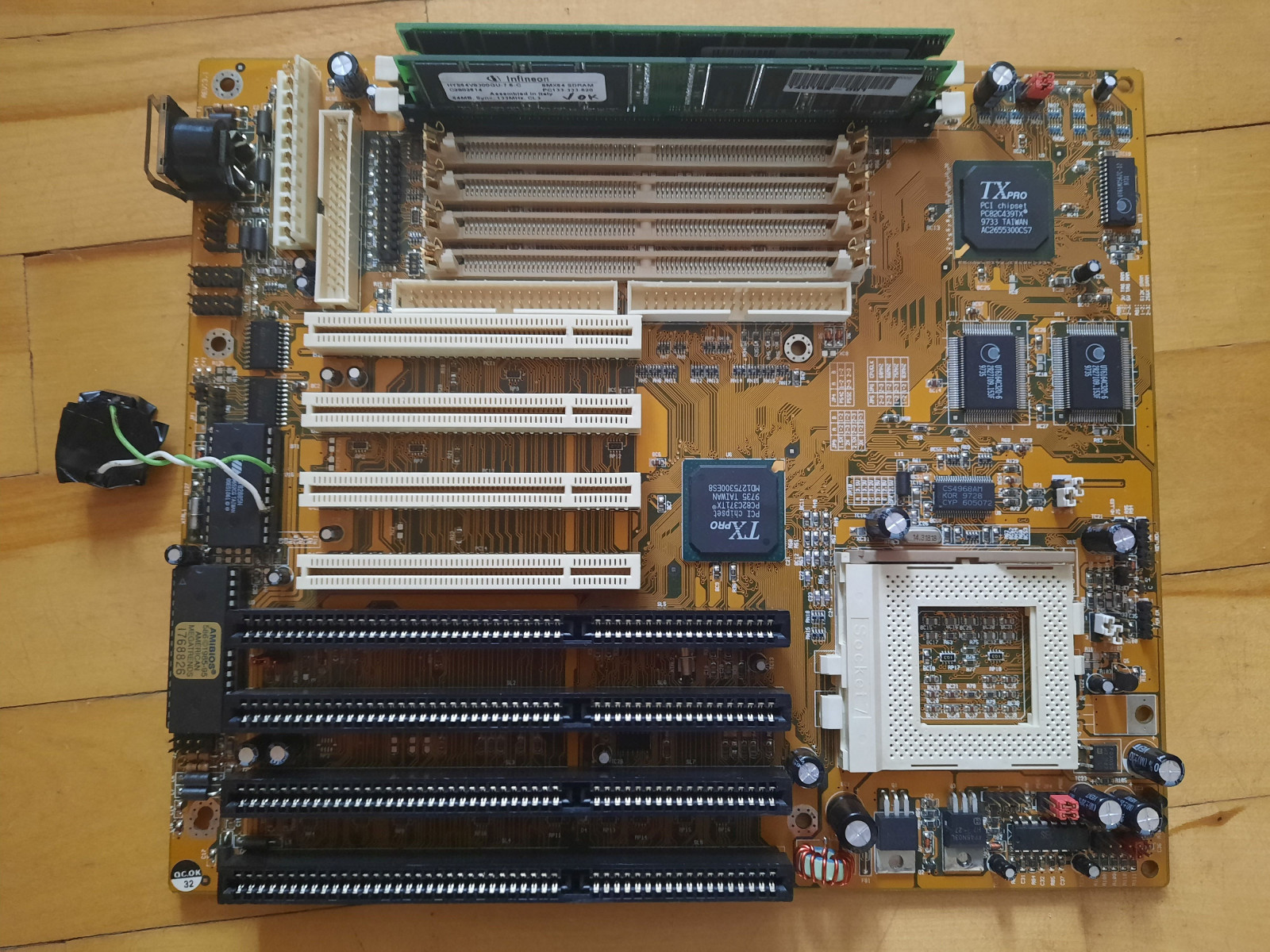

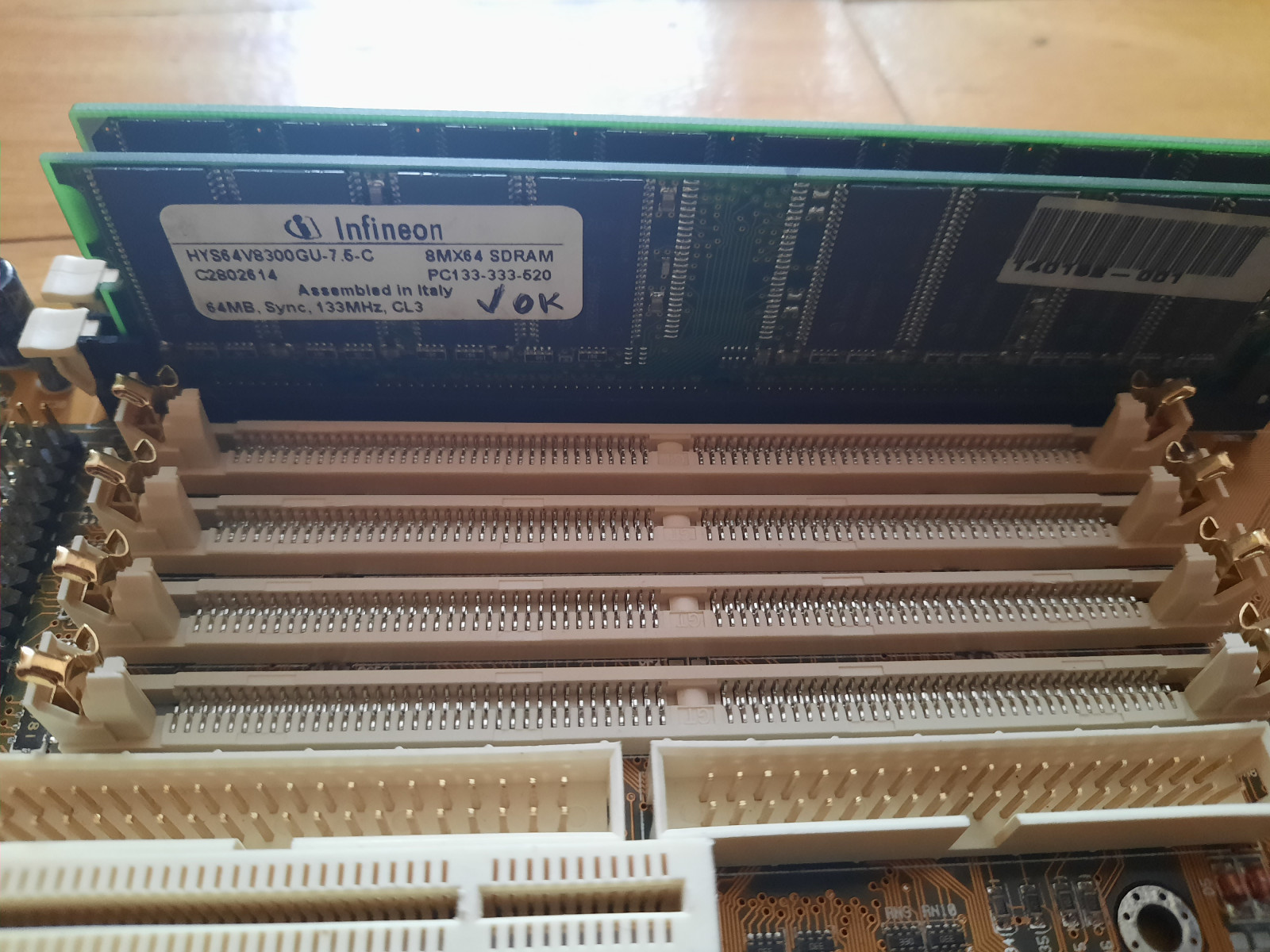

Vintage PC Chips M560 V3.1 AT motherboard + RAM 128 MB as pictured.
Tested and OK.

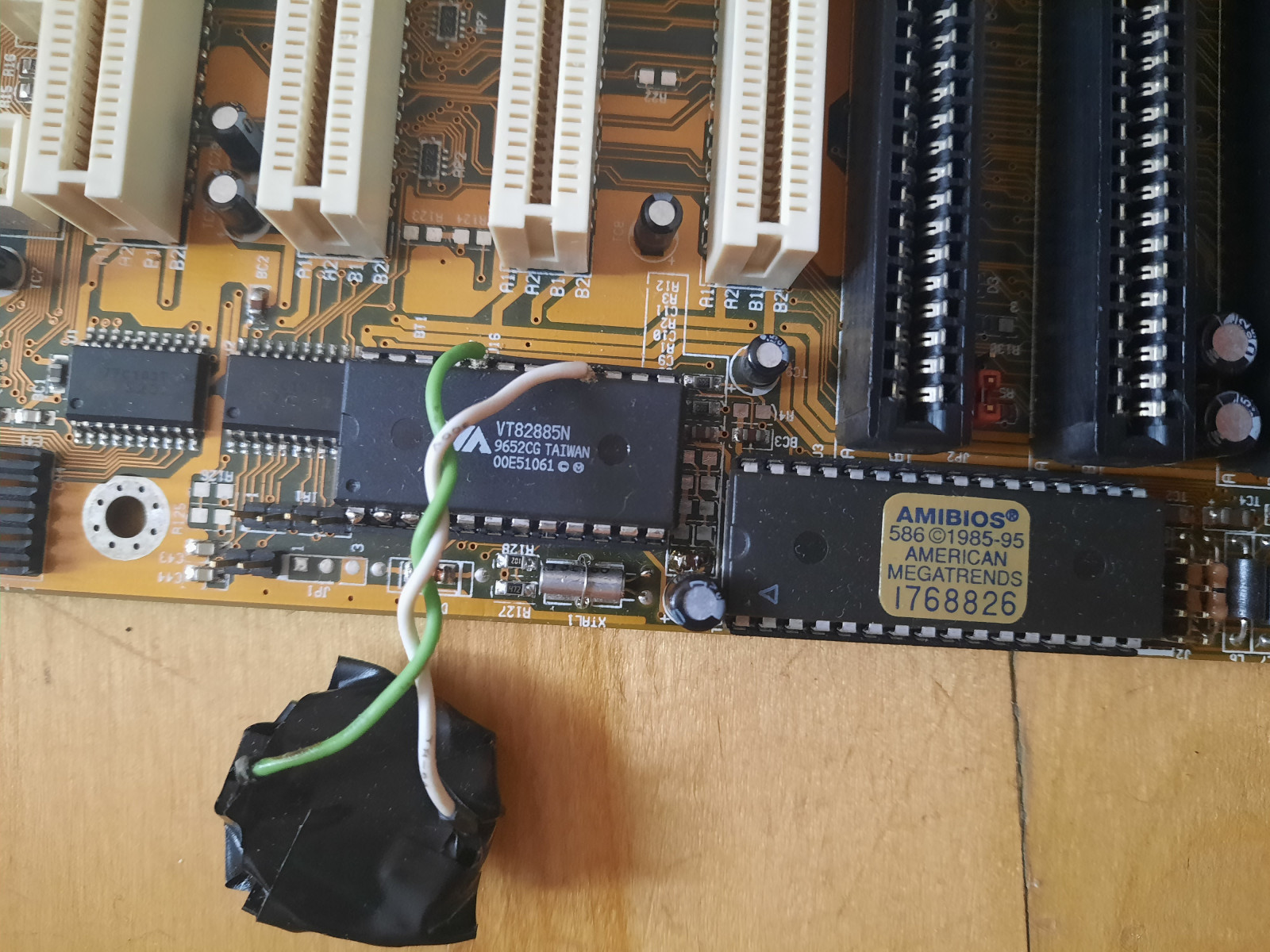

There is a simple mod on the motherboard concerning the RTC chip. The original chip was a hybrid with a dead battery inside and the motherboard could not POST because of the dead battery and the error was unskippable. The hybrid was dismantled and original RTC chip used, with RTC battery soldered on its leads. A crystal was added on the required place on the motherboard, that was also part of the old hybrid IC. Now there is no need to buy expensive hybrid ICs, whenever the battery goes dead, anyone can just replace it as it is socketed (and insulated by tape).
