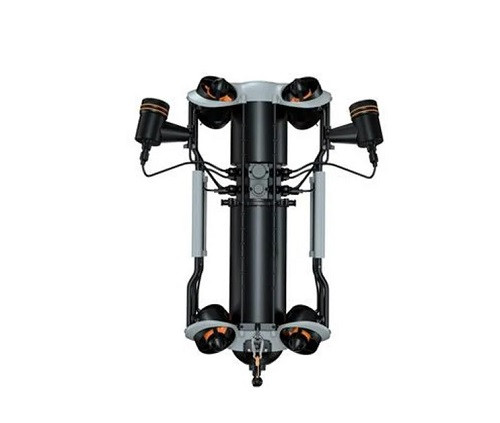

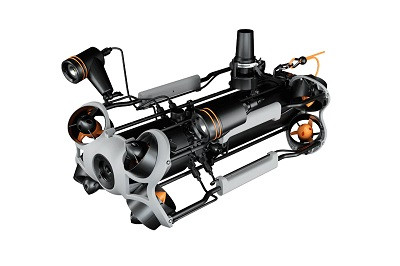

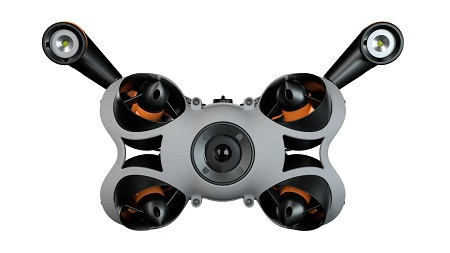

CHASING M2 PRO MAX
It is an industrial-grade underwater remote operated vehicle (ROV) designed for government and enterprise users. It is equipped with eight vectored thrusters, allowing 360-degree omnidirectional movements. The ROV can navigate at a maximum speed of 3 knots, dive to 200 meters deepwater, and move around a maximum horizontal radius of 400 meters.

CHASING M2 PRO MAX adopts the quick assembly and disassembly technology, enabling tool-free quick assembly and disassembly of more than 20 accessories such as sonars, CHASING USBL KIT, and CHASING Water Sampler. In addition, CHASING M2 PRO MAX has an integration of five ports, which simplifies the installation of multiple accessories. Up to five accessories can be mounted at a time. The ROV is powered by the second-generation anti-stuck motor C-MOTOR 2.0, which has 30% more power for a better anti-stuck capability. The second- generation shore-based power supply system (C-SPSS) is an optional accessory. It adopts the battery compartment design, with 1500W upgraded output power, ensuring M2 PRO MAX constantly works at full power without an outage. The external 8000-lumen floodlights can achieve the best beam angle at 150 Degree , which resolves the reflection of floating debris and clearly illuminates every detail.

CHASING M2 PRO MAX provides easier-to-use, more professional, and more reliable underwater solutions for various industrial applications, such as underwater emergency rescue, hull and dock inspection, aquaculture inspection, water conservancy and hydropower inspection, scientific exploration, and offshore wind power facility inspection.

Easy and Convenient Assembly and Disassembly
The Quick Accessory Assembly and Disassembly Technology allows you to install accessories on the ROV by combining the slide-in mounting platform and the ROV support rod. The process is convenient and reduces assembly and disassembly time and effort.

Five Ports Integrated Simplifies the Installation of Multiple Accessories
The docking station is integrated into the ROV, simplifying the installation of multiple accessories. The new layout of the five reserved ports supports up to five accessories at a time.

More than 20 innovative CHASING accessories and third-party hardware can be installed for extensions. Such as:

• LASER Scaler
• Auxiliary Camera
• DISTANCE LOCK SONAR
• Imaging SONAR
• WaterLinked DVL
• Adapter Box
• USBL
• Grabber Arm 2
• Control Console
• Multiparameter Sonde
• 500ml Water Sampler
• C-SPSS

A variety of combination strategies can meet your requirements in most application scenarios

• Underwater & Search Rescue
• Hull & Dock Inspection
• Aquaculture Inspection
• Water Conservancy & Hydropwer Inspection
• Scientific Exploration
• Inspection of Offshore Wind Power Facilities

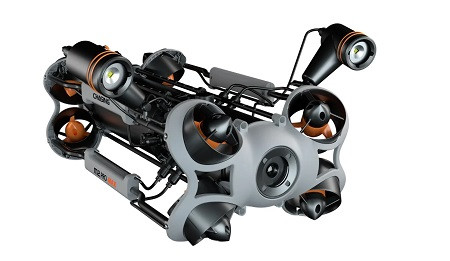

External Floodlights Illuminate Every Detail
Two external floodlights can provide a sum of 8000 lumens' illumination and achieve the best beam angle at 150 Degree , which can resolve the visual interference caused by the reflection of floating debris. This feature also allows stepless adjustment of brightness in the range of 0-100%, allowing the ROV to illuminate each detail in the underwater environment as needed.

The floodlights can work folded or unfolded underwater, meeting various needs for complicated underwater application scenarios.

200m Depth Rating for a Broader Operating Range
M2 PRO MAX can dive up to 656'(200m) with a maximum horizontal radius of 1312' (400m). Combining with different lengths of tether cables, it can work in a broader range and meet more needs of underwater applications.

• Maximum diving depth 656' (200m)
• Maximum activity radius 1312' (400m)

4K + EIS Image Stabilization, F1.8 Aperture
M2 PRO MAX supports 4K video resolution and 12-megapixel photos. It is equipped with 1/2.3 SONY CMOS and EIS anti-video-shake feature, allowing you to capture every underwater detail.

• 4K and 1080p video
• 12 megapixel photo
• 1/2.3 SONY CMOS
• EIS anti-video-shake feature
Removable Micro SD memory card
Download your works anytime and anywhere. The default 128G Micro SD memory card is removable. Users can choose micro SD cards with different capacities (up to 512G).

• Default 128GB SD memory card
• Maximum 512GB

CHASING M2 PRO MAX Features
Industrial-Grade Underwater ROV
Easy and Convenient Assembly and Disassembly
Built-in Docking Station
C-SPSS output power is increased to 1500W, ensuring that the ROV can work 24/7 at full power without an outage
Two external floodlights can provide a sum of 8000 lumens' illumination and achieve the best beam angel at 150 Degree
Maximum diving depth 656' (200m)
Maximum activity radius 1312' (400m)
4K and 1080p video
12 megapixel photo
1/2.3 SONY CMOS
EIS anti-video-shake feature
Default 128GB SD memory card (Maximum 512GB)
