OneChipBook -12-A FPGA development platform
Description
The package includes:
OneChipBook-12-A main unit × 1,USB Type-C cable × 1
Important Notice:
The OneChipBook is a blank FPGA development platform with no predefined functionalities.
Overview

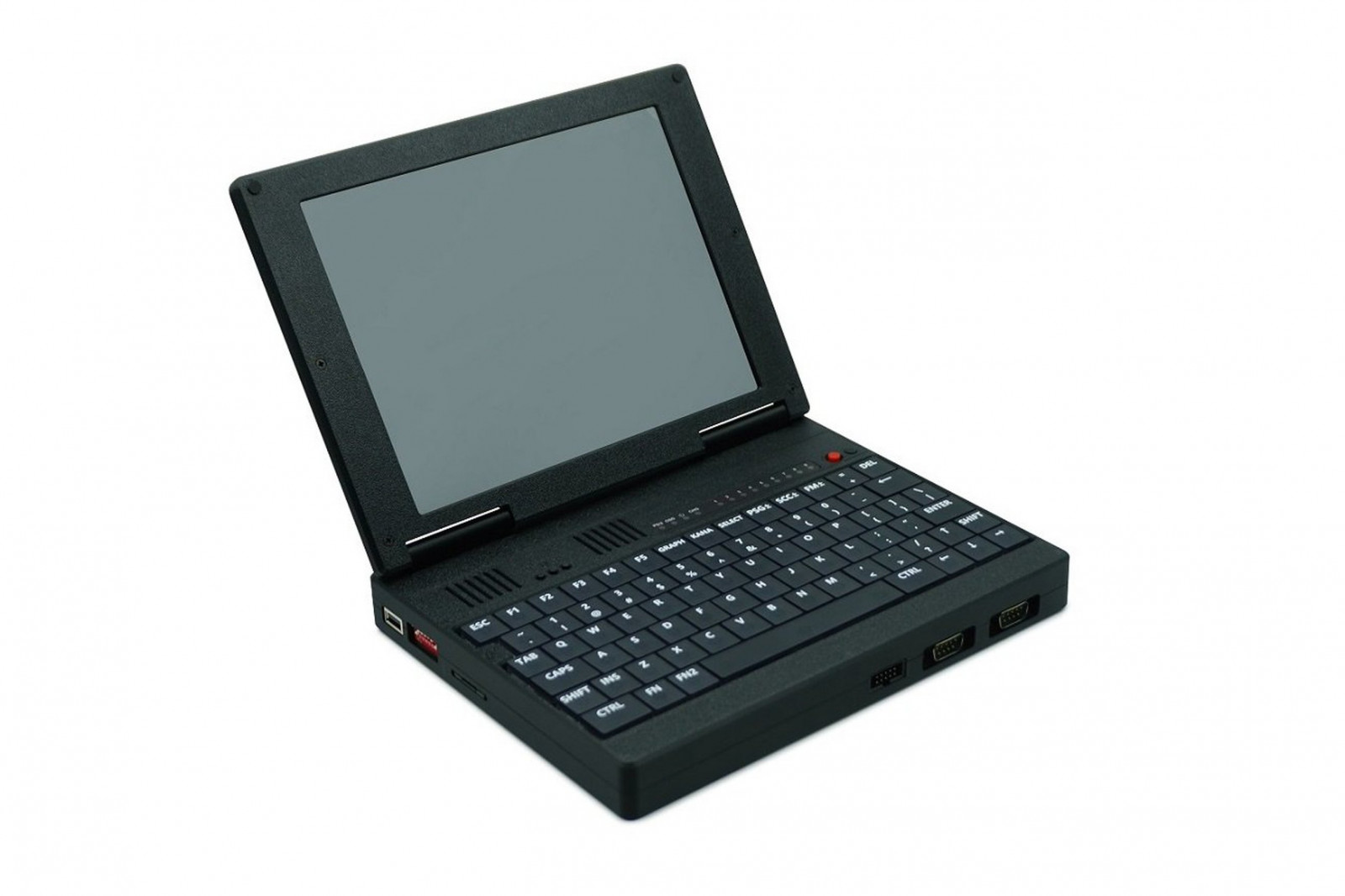

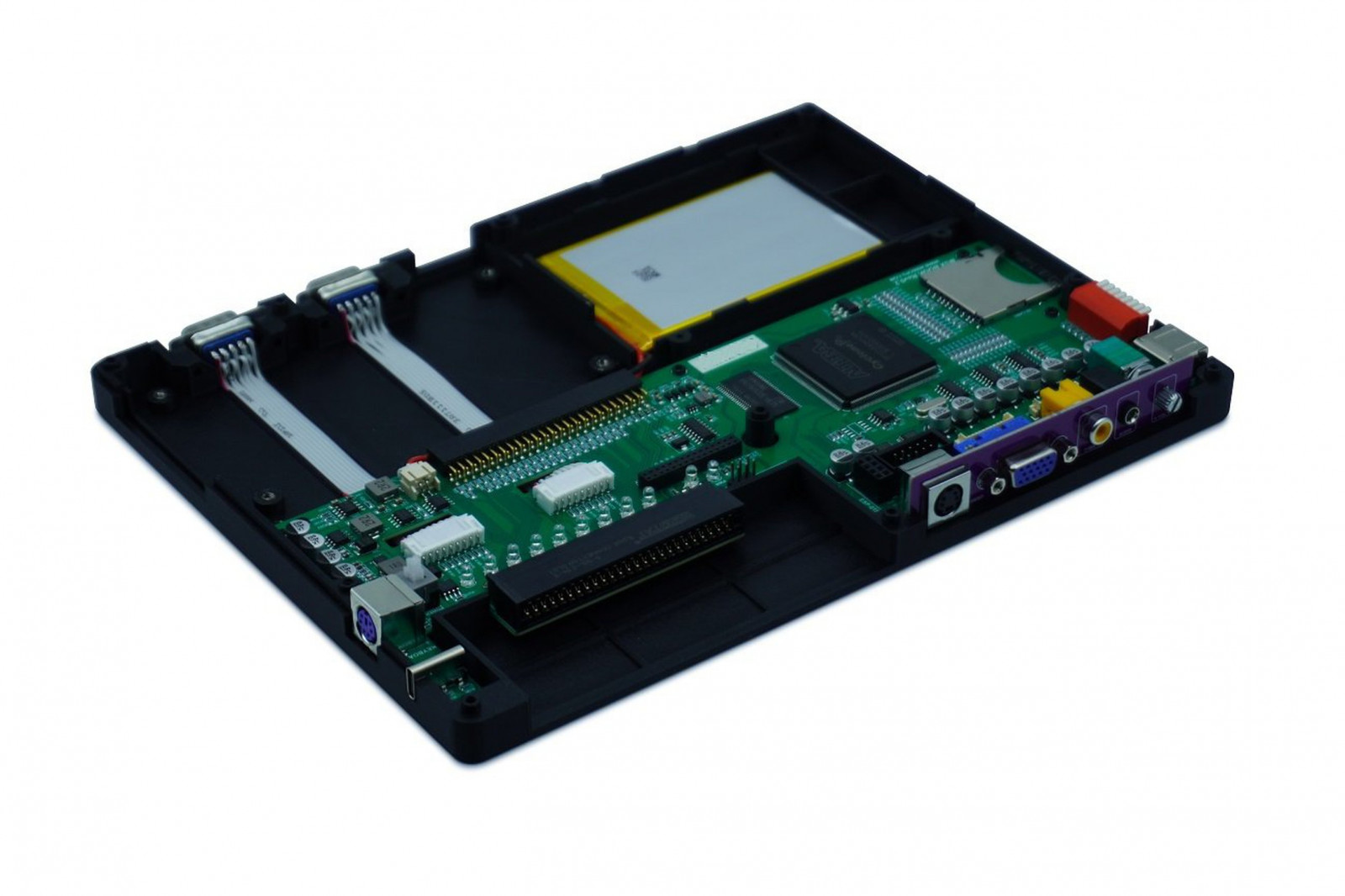

The OneChipBook-12 is an FPGA development platform centered around the Cyclone EP1C12Q core. It integrates a VGA monitor(LCD form iPAD2), PS/2 mechanical keyboard, battery, and I/O ports. All peripheral devices are connected to the FPGA's general-purpose I/O pins, allowing users to control the entire system by developing for a single chip without complex interface design. OneChipBook-12 has two order numbers. They share identical keyboard scan codes, with the only difference being the keyboard silkscreen markings.
OneChipBook -12 (12k Les) - A (Keyboard layout A)
OneChipBook -12 (12k Les) - B (Keyboard layout B)
Features
FPGA: Cyclone EP1C12Q240
12,060 Les
239,616 bits RAM
32MB SDRAM
1024x768 VGA monitor

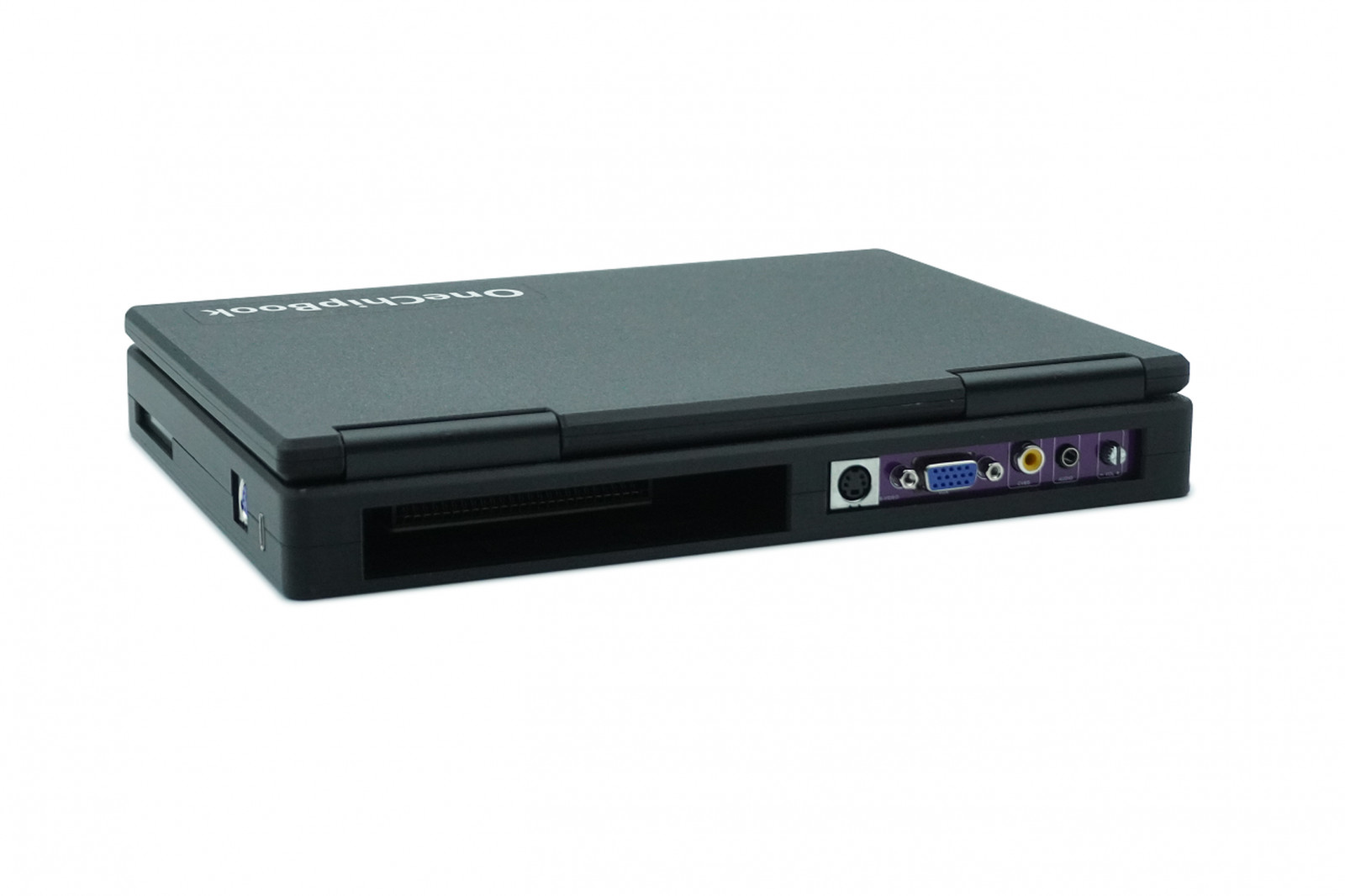

VGA/S-Video/CVBS Output interface

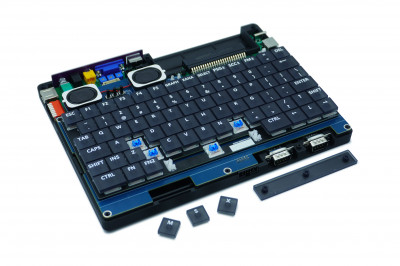

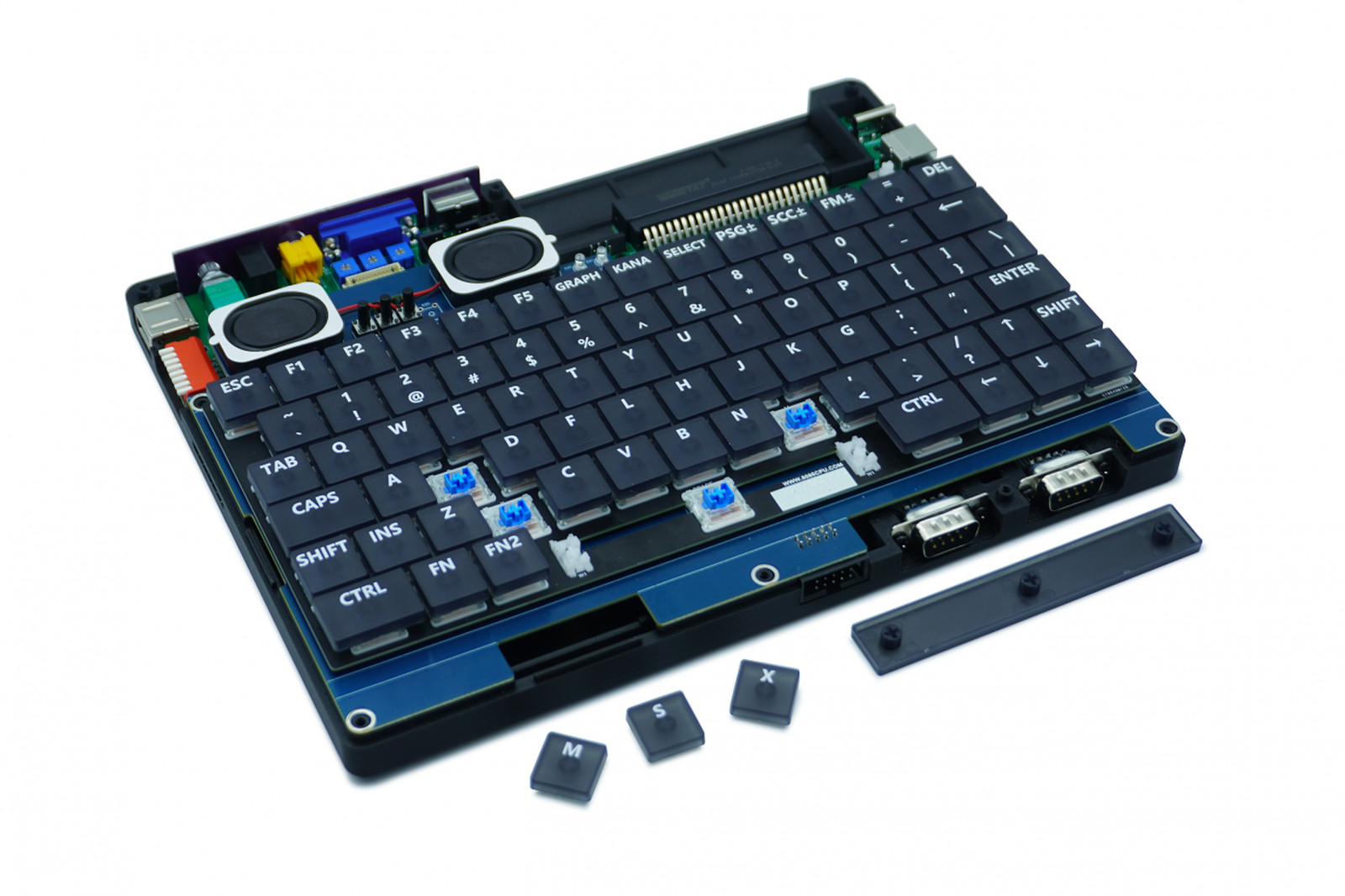

Mechanical keyboard (PS/2)/ Backlight
Stereo speakers
Type-C charging port
Lithium battery
Expansion Bus Support
Datasheet/Technical reference: https://d3s5r33r268y59.cloudfront.net/datasheets/37510/2025-03-17-18-27-20/OneChipBOOK-12_Technical_Reference_Rev1.0_EN.pdf
