5x SO24 SOP24 SOIC24 SOIC24W SSOP24 TSSOP24 to DIP24W adapter board MR01
Description
5x SO24 SOP24 SOIC24 SOIC24W SSOP24 TSSOP24 to DIP24W 2.54 mm pitch adapter board MR01
Useful for breadboarding and prototyping with small ICs.
2-in-1:
One side: SO24 SOP24 SOIC24 SOIC24W

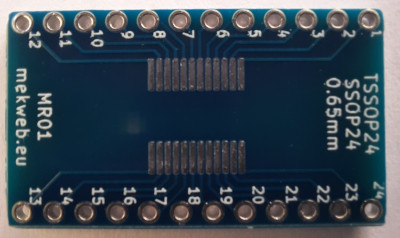

Other side: SSOP24 TSSOP24
Dimensions: 31 x 17.5 mm (1.22 x 0.689 in)
PCB thickness: 1.2 mm (0.0472 in)
Raster: 2.54 mm (0.1 in), distance of hole rows 15.24 mm (0.6 in) = 6 breadboard holes
Trace width: 10 mil (0.254 mm) (0.01 in)
Hole diameter: 1 mm
Pad diameter around hole: 1.7 mm
Material: FR-4
Color: Blue
Double-sided PCB
Solder mask
Fits IC packages:
- SO24 pin pitch 1.27mm (0.05 in)
- SOP24 pin pitch 1.27mm (0.05 in)
- SOIC24 pin pitch 1.27mm (0.05 in)
- SOIC24W pin pitch 1.27mm (0.05 in)
- SSOP24 pin pitch 0.65mm (0.026 in)
- TSSOP24 pin pitch 0.65mm (0.026 in)
... and others with smaller number of pins and same pin pitch
