Advantech SOM-DB5800 rev. A2 development board w/COMe module w/riser
Description
Development board Advantech SOM-DB5800 rev. A2 - COMe in accordance with PICMG COM.0 R2.1 Type 6 / 10 Pin-out.
Supports COM Express Basic, Compact and Mini modules.
ATX form factor with support of ATX and AT power supply.
Display: VGA, LVDS, HDMI / DP with SOM-EA20 riser card (included).

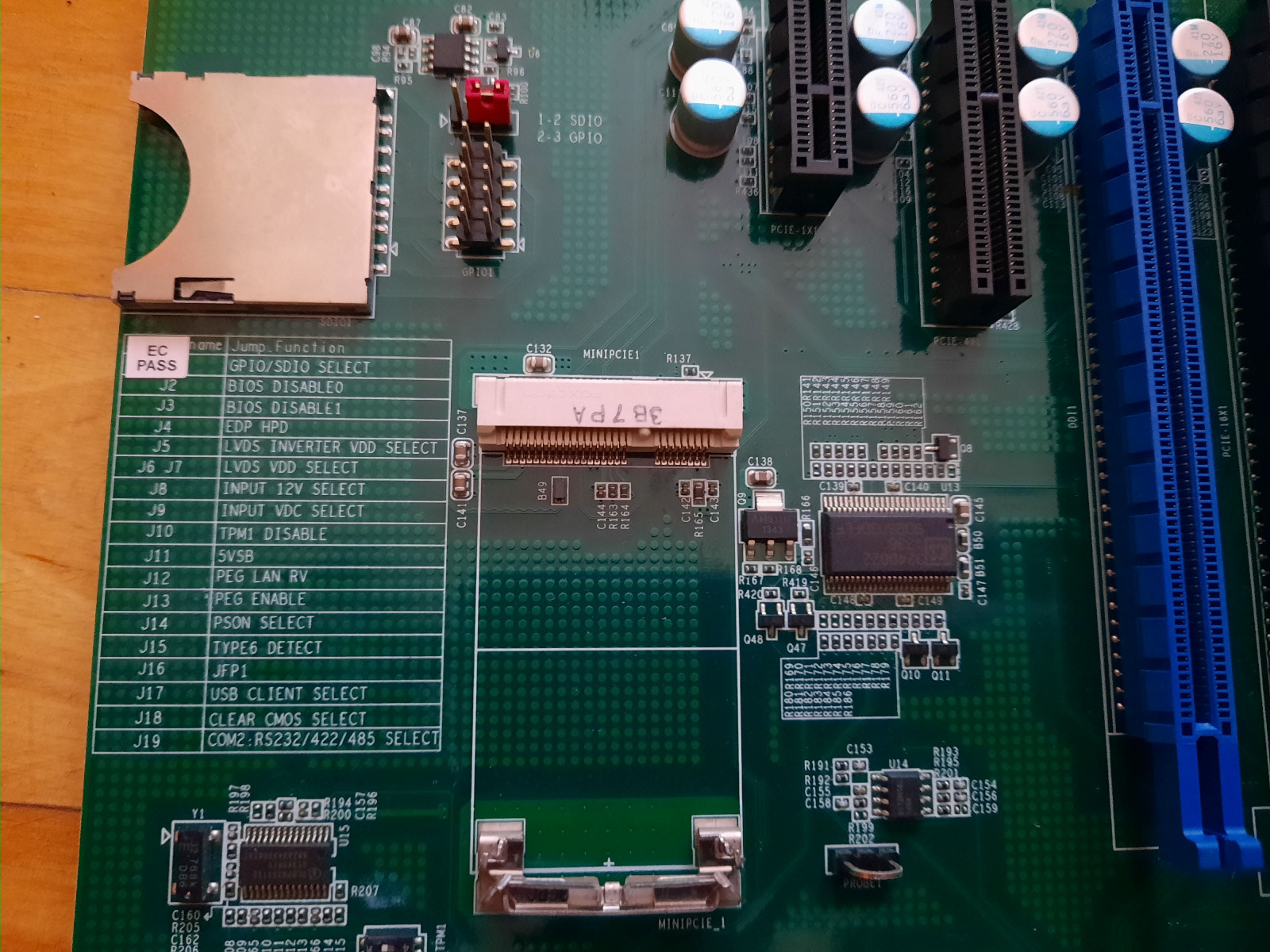

Expansion slots: PCIe x16, PCIe x4, PCIe x1, Mini-PCIe.

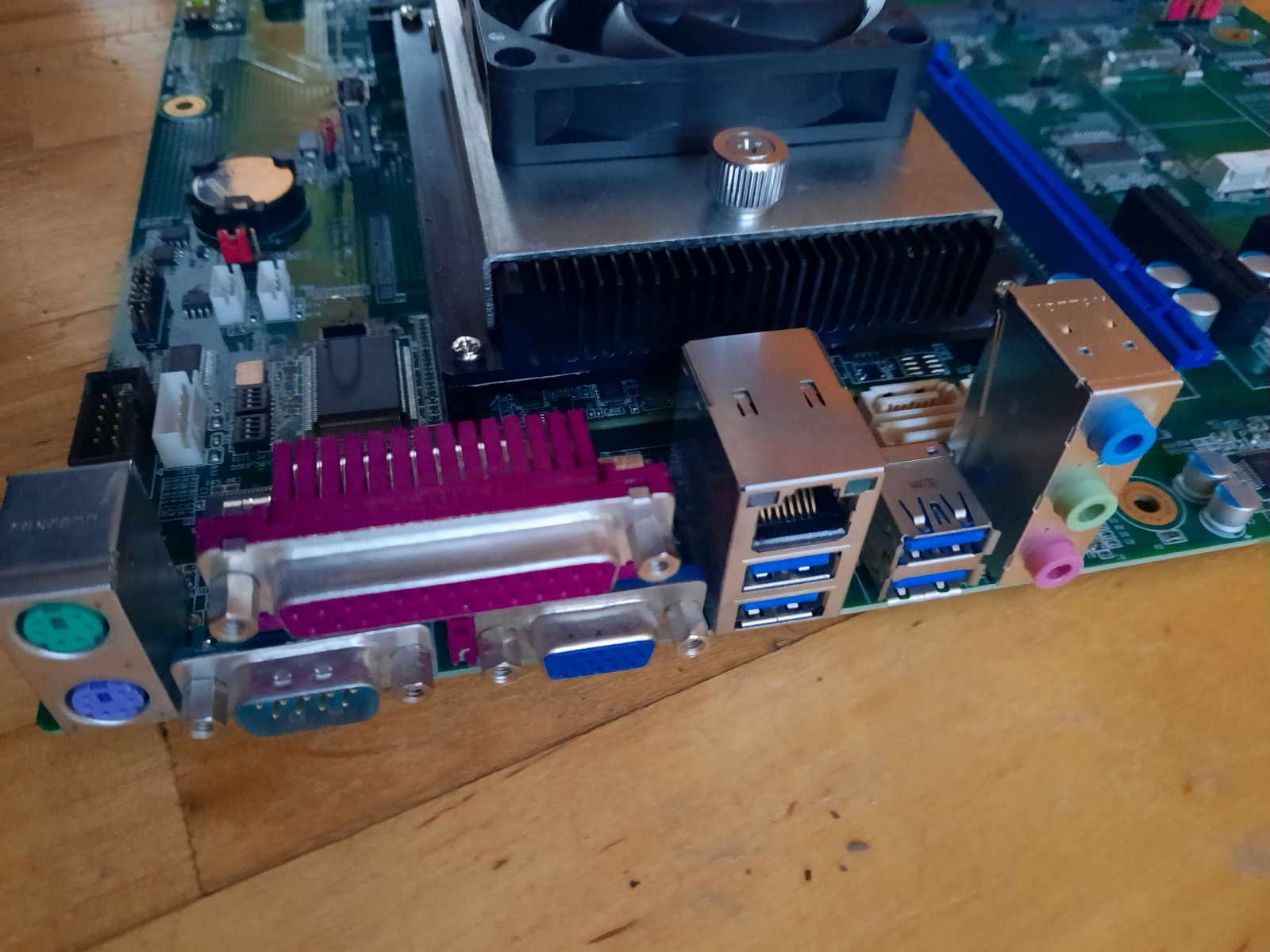

Rear connectors: PS/2, 4xUSB, VGA D-SUB, COM port, LPT port, Audio, SPDIF, incl. bracket for PC case mounting.

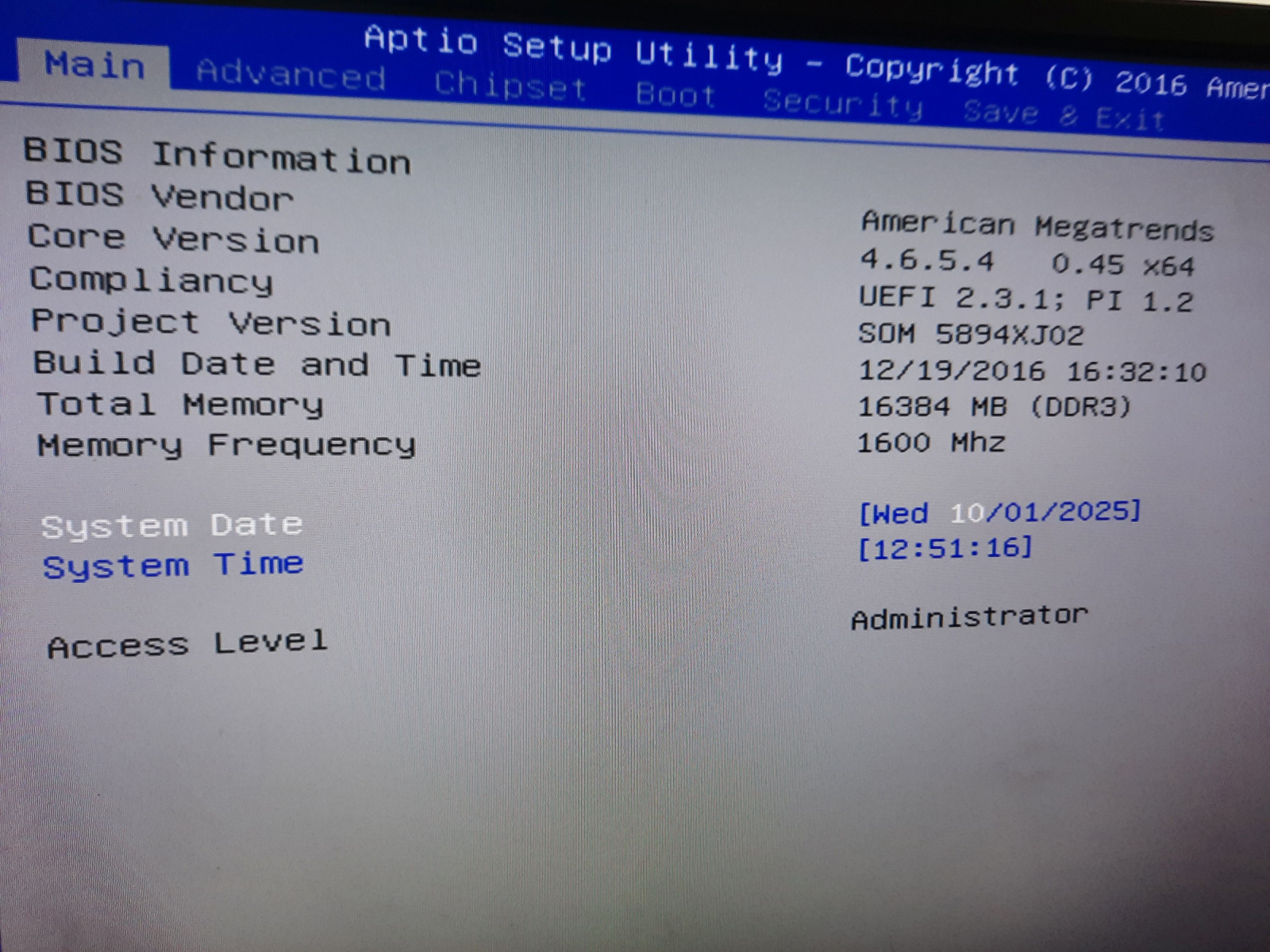

This board can be used as a standard PC. On-board battery is replaced, everything that I could test is tested under Windows 10. Audio did not work for some reason. LAN is of type: Intel I217-LM 1 Gbps.
This listing includes COM Express module with following parameters:
- CPU: Intel Core i7-4700EQ @ 2,46 GHz
- RAM: 16 GB DDR3

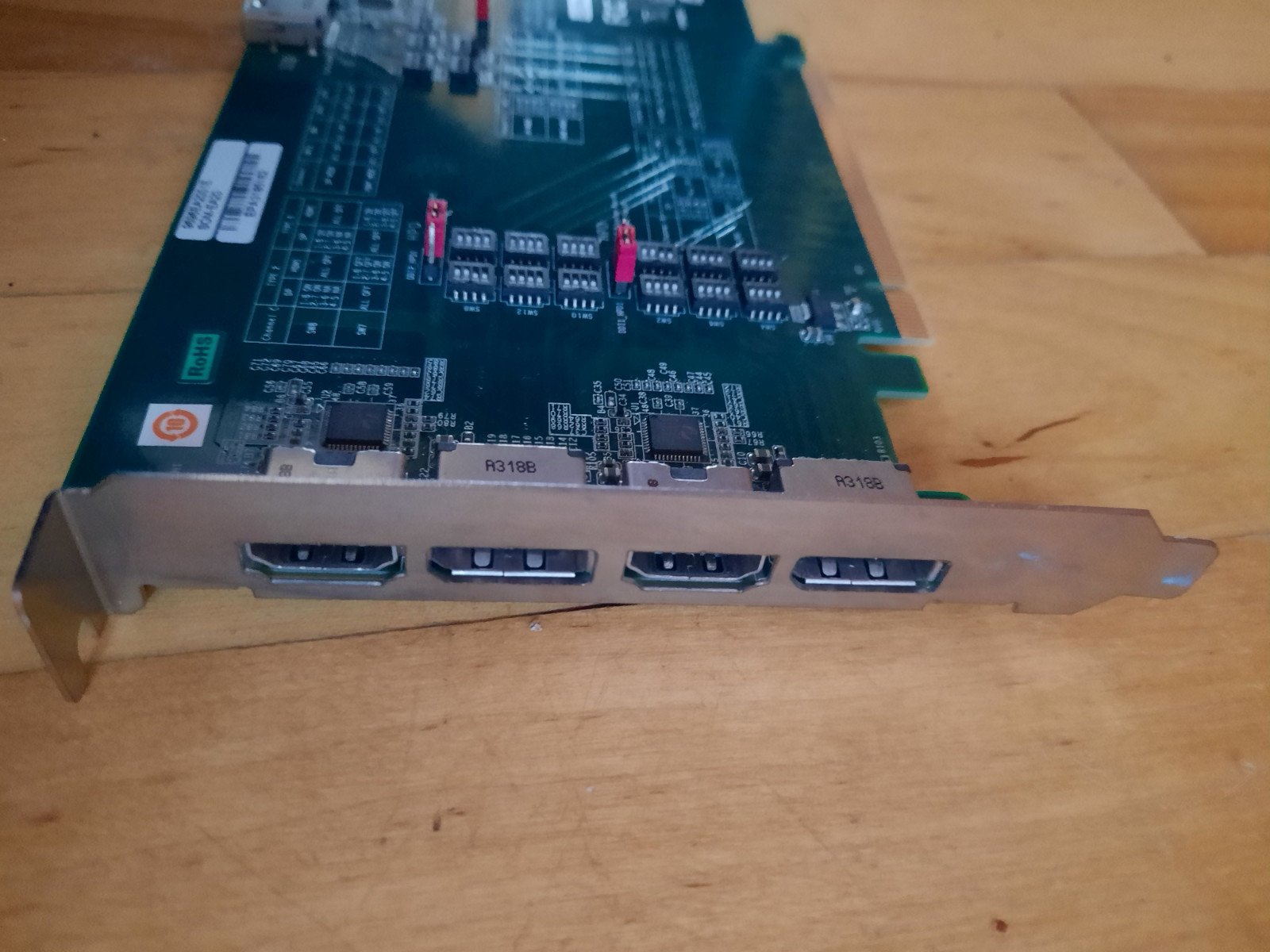

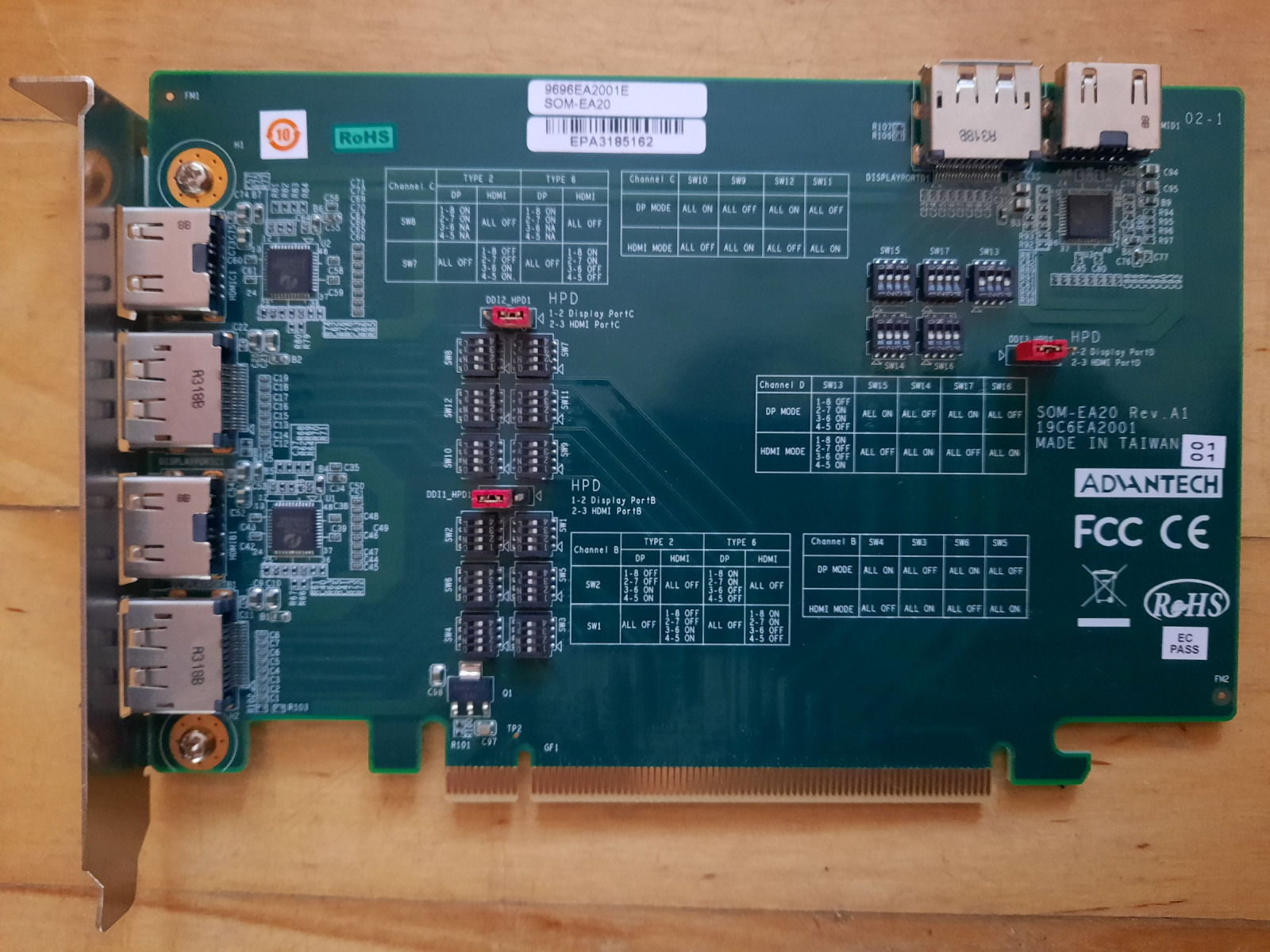

This listing also includes Advantech SOM-EA20 riser card that is also tested and working. The card has 3 pairs of ports (DisplayPort and HDMI), where each pair can be configured to be DisplayPort or HDMI with jumpers.

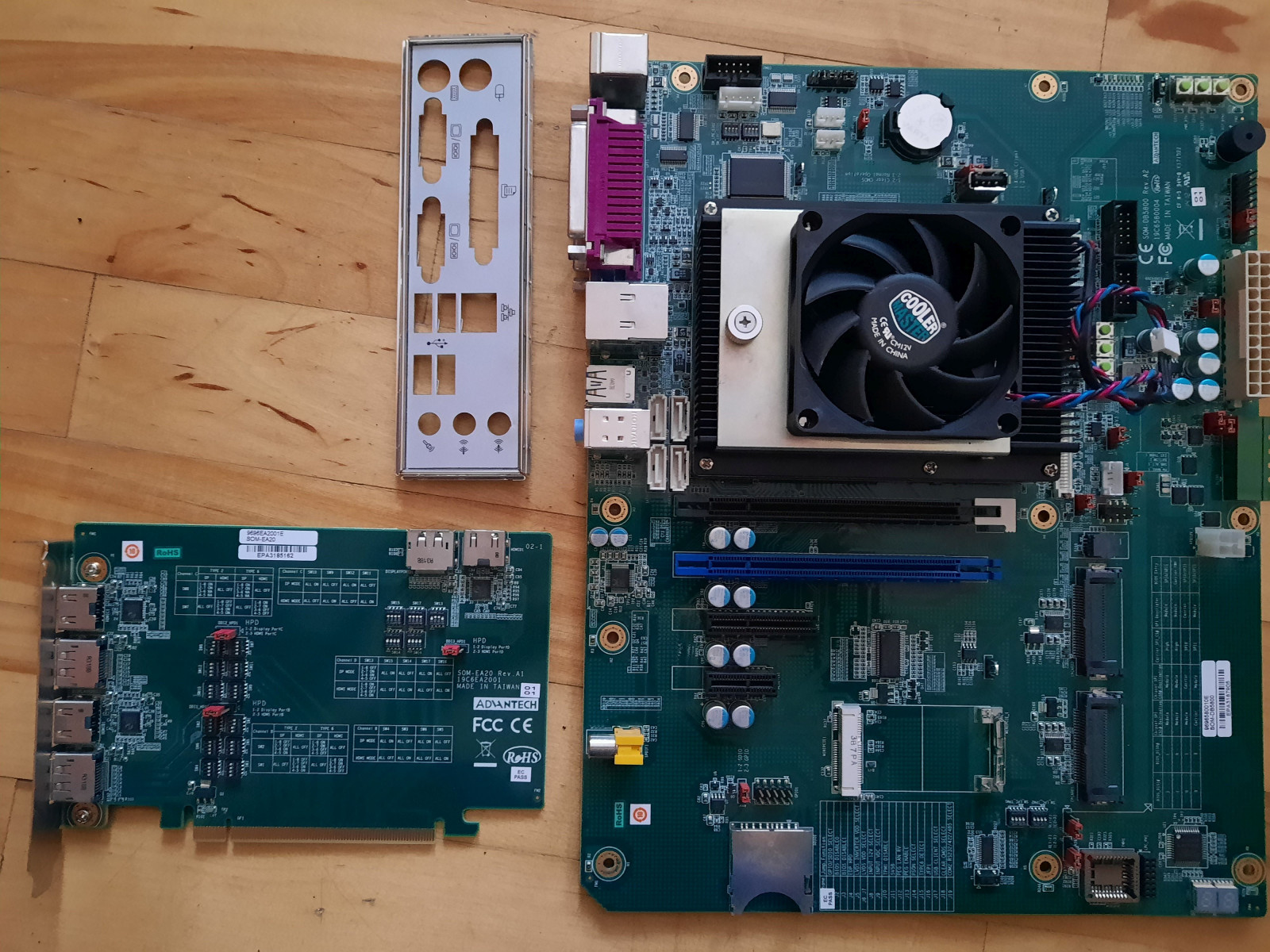

What you get:
- Development board Advantech SOM-DB5800 rev. A2
- COMe module with CPU and RAM as denoted above
- Riser card Advantech SOM-EA20
- PC bracket
More photos are available but this site does not allow more than 6 :(
